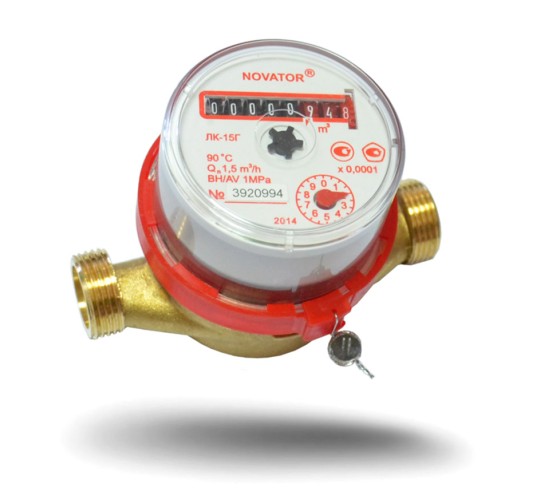

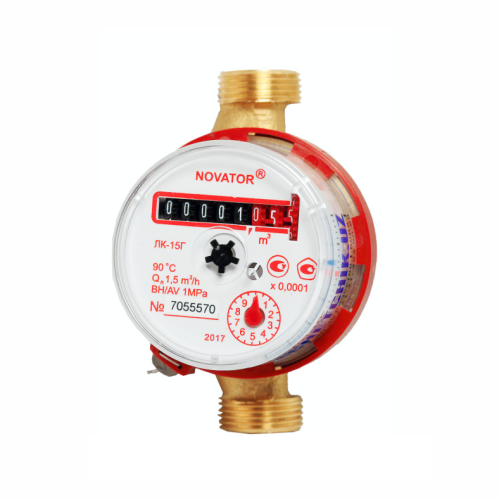

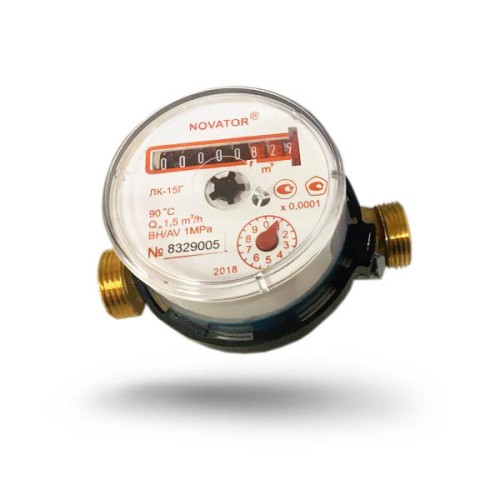

Hot cold water meter | Novator LK-15g
Leave a review
This item sale 93 countsDescription
Technical characteristics of the product:
The NOVATOR LC-15 winged water meters are designed to measure the volume of drinking water flowing through them or hot water in hot water systems flowing under a pressure of no more than 1 MPA and for temperatures from 5 ° C to 30 °C and from 30 ° C to 90 ° C with a rotatable counting mechanism for easy reading in any position.
The counters are equipped with a counting mechanism that has a magnetic connection with the impeller device. The suspension of the impeller is agate stones, or corundum PKS.
The materials of the parts in contact with running water are made of polypropylene 01020-16, do not reduce the quality of water and are resistant to its effects.
Body – brass
Counter Type: Universal
Connection: Threaded
Accounting method: Mechanical
Diameter: 15 mm
Installation Objects:
Flat;
Cottage;
Internal accounting.
Completeness of the product:
Water meter;
Mounting parts;
Pads;
Passport;
Box.
Manufacturer's country: Ukraine
Characteristics
| Diameter | 15 Ø |
| Installation object | Apartment, Cottage, Internal accounting |
| Type of water accounting | Cold water, Hot water |
| Connecting ASKUG | No |
| Brand | Novator |
| Accounting method | Mechanical |
| Compound | Threaded |
| Min-Nom-Max flow rate (m3/h) | × × 2.5 |
| Measuring range (m3/h) | — 2.5 |
| Sensitivity threshold m3/h | 0.03 |
| Accurasy (active) % | 5 |
| Working temperature | 5 — 90 °C |
| Size (length-width-height) | 190 × 80 × 85 cm |
| Equipment | Device, Box, Mounting parts, Passport |
| Guarantee | 12 mo. |
| Life time | 12 years |
| Country | China, Ukraine |
| Condition | New |
| IP | IP65 (dustproof, anti-jet protection at an angle) |
| Доп. информация | |
| IKPU | 09028001002000000 |
