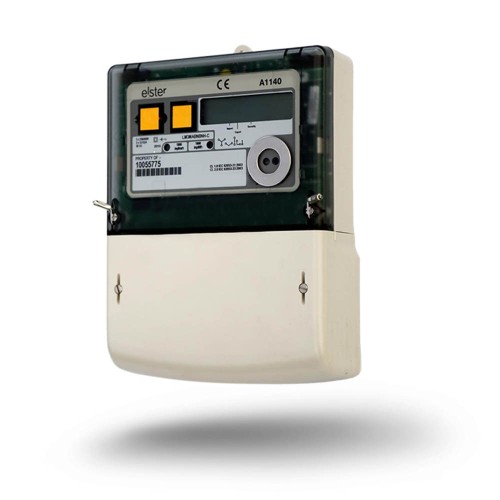

Electricity meter | Alfa A1140 | Russia

ALFA A1140 three-phase, multi-tariff, electronic electric meters manufactured by ELSTER Group enterprises in many countries of the world are leaders in the process of universalization of metering devices and can be used in a variety of electricity metering points.

The meter has a modern compact and safe housing that allows you to install it in any cell and electrical cabinet.
The counter is simple and reliable to use. The versatility of the A1140 three-element meter allows it to be connected to any three-phase and single-phase circuits.
Due to its cost, it is available for use by household consumers and in the small-motor sector, and good functionality allows the use of the A1140 meter in distribution networks and for industrial consumers as part of automated electricity metering systems (ASKUE).

FEATURES:
GSM/GPRS modems of the Metronica 100 series for remote reading from A1140. Withstand overvoltage in the 0.4 kV network.
Communication Ethernet module "Metronica 300". Allows you to integrate A1140 into the local computer network of the enterprise.
ALFA A1140 three-phase microprocessor meters of accuracy class 1.0 are designed for electricity metering in distribution networks, in the small-motor sector, for household consumers, as well as for technical accounting at industrial enterprises. The use of the software allows you to read commercial data and program the counter. At the same time, the computer can communicate with the counter via an optical and digital port. To parameterize the operation of the counter, AlphaPlus 100 software is used, the latest version of which can be downloaded in the corresponding section of the site.

For household consumers:
Transformer or direct-on counter with a maximum current of 100 A;
Up to 8 tariff zones;
The ability to connect a modem for cellular communication;
Measurement of active energy modulo;
Compact housing.

For businesses:
Measurement of active and reactive energy in two directions;
Fixing the maximum power;
Maintaining a load profile;
Digital interface RS-232 or RS-485;
Measurement of network parameters.

For power sales:
Remote reading of information;
Protective functions (fixing, removing the lid, power off, facts of configuration changes, etc.);
Versatility according to the connection scheme;
Checking the correct connection when installing the counter;
Standard mounting holes.

IN THE PACKAGE:
Counter;
Passport;
Warranty card;
User Manual;
Box.
